Ultraviolet UVC · stage 05
Sterilises continuously and removes bacteria, viruses and microorganisms without adding anything to the water: no chemistry, no by-products, no taste.

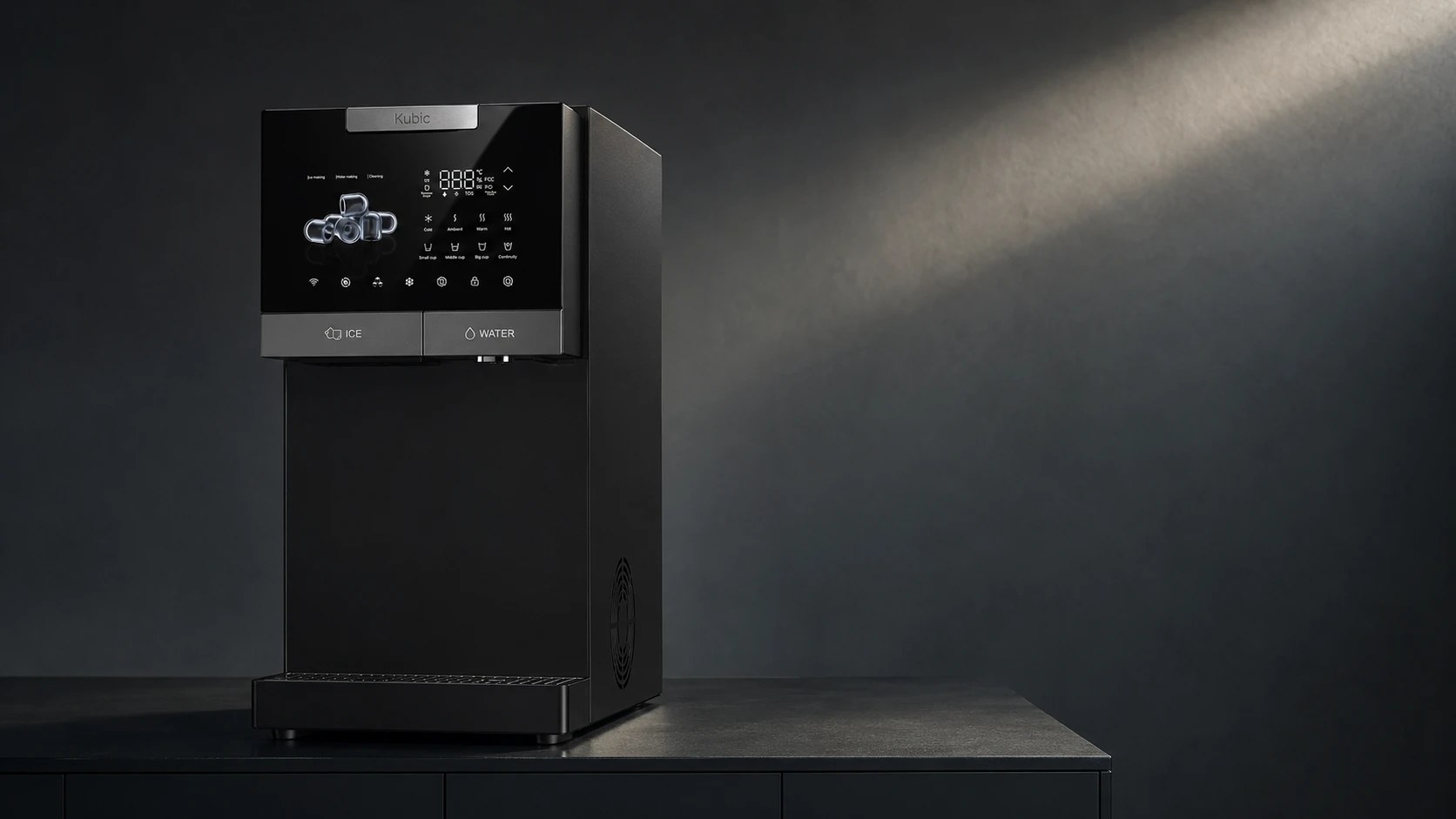

氷 kubic · einhaus
Cold water, hot water and ice. Designed, not just filtered.
A countertop water processor that treats, remineralises, chills, heats and makes ice. It takes up 41 cm of counter and connects to the mains: no tank to fill, no bottles to carry up.
the blind spot
You choose the coffee. You choose the wine. The ice you buy in a bag.
Bagged ice is made with someone else's water, travels for hours and melts in your glass releasing everything it carries. And very cold tap water simply tastes of little.
That is where a drink is won or lost: in ice that doesn't spoil it and in water that, even at 5 °C, still tastes of something. Kubic was born from exactly that blind spot.
01 the unit
Four waters. One gesture.
A single machine where there used to be four: the filter jug, the ice tray, the kettle and the bottles on the landing. It treats, remineralises, chills, heats and makes ice, and it is operated from a panel you understand without a manual.
9
ice cubes per cycle, 8 to 10 minutes
2.5 L/h
of cooling capacity
3 s
for hot water
installation
It connects to the mains. There is no tank to fill.
Kubic draws water directly from the mains. It has no feed tank and no external reservoir: no bottles to carry up, no drums to store, no standing water waiting inside a tank. You connect it once and that's it.
415 × 305 × 455
mm on the counter
0.4–0.8
MPa working pressure
02 the water
Five stages. The fourth is ours.
Five treatment stages and, in the fourth, the remineralisation process we have spent twenty years refining.
01
Sediment
The polypropylene filter holds back sand, rust and coarse particles.
02
Chlorine and odours
Chlorine, odours and organic matter are removed, without touching the taste.
03
Reverse osmosis
300 G membrane at 0.0001 µm: heavy metals, bacteria and viruses out.
04
byaccuor mineralisation
Our own stage: it refines the taste and adds the mineral composition calculated for cold and ice.
05
Ultraviolet UVC
Continuously sterilises the already-treated water and the ice, adding nothing.
4,000 L
total filtration capacity
72 %
water recovery
0.0001 µm
filtration grade
byaccuor proprietary technology · stage 04
Cold mutes the taste. Our composition is calculated for that.
The colder the water, the less you perceive it: cold numbs aroma and taste. With ice the effect multiplies, because the water freezes and melts again inside the drink.
That is why Kubic's remineralisation is not that of any ordinary appliance: it is the byaccuor process, with a mineral composition designed to work cold. So that water at 5 °C keeps its body, and so that the cube, as it melts, accompanies the drink instead of diluting it.
Proprietary development, born in our laboratory in the Penedès. We have been designing waters since 2004.
hygiene
Water isn't only fouled on the way in. It is while it waits, too.

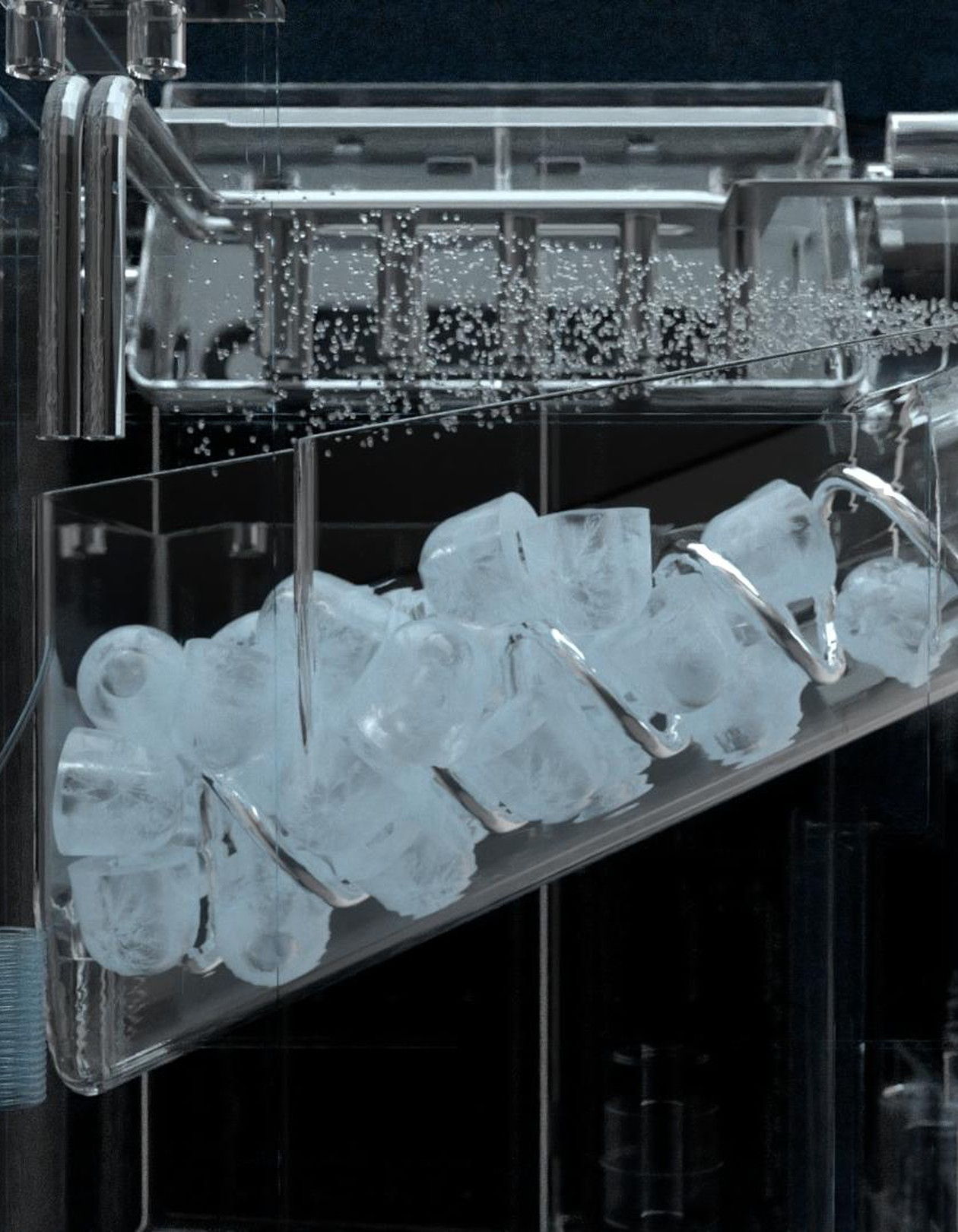

Ions in the ice bin
The air around the ice matters too. Ionic sterilisation of the compartment slows bacterial growth and odours, so the cube reaches the glass as clean as it left.
freshness
Every 5 hours the water starts over.
Water that waits goes flat. Kubic recirculates it every five hours: it clarifies, holds back bacteria, recovers the taste and completes mineralisation. When you ask for it, it is minutes old, not days.
03 the ice
Clear, slow and no freezer taste.

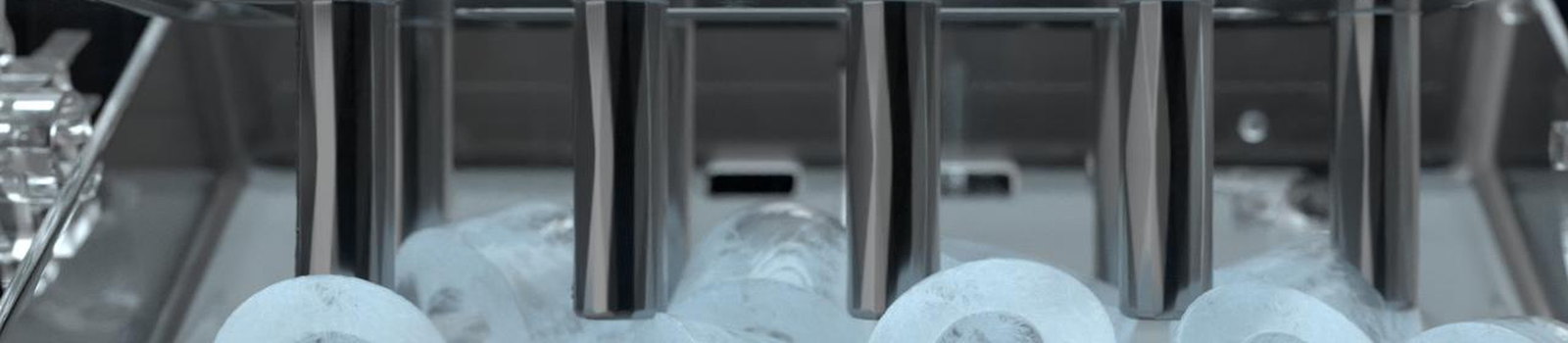

The evaporator is stainless steel, not copper: it conducts better, doesn't rust or age and transfers nothing to the water. Out of it comes a bullet cube, clear and dense, that melts slowly and keeps the drink cold without watering it down.
9
cubes per cycle
8-10 min
full cycle
+500 g
reserve in the bin

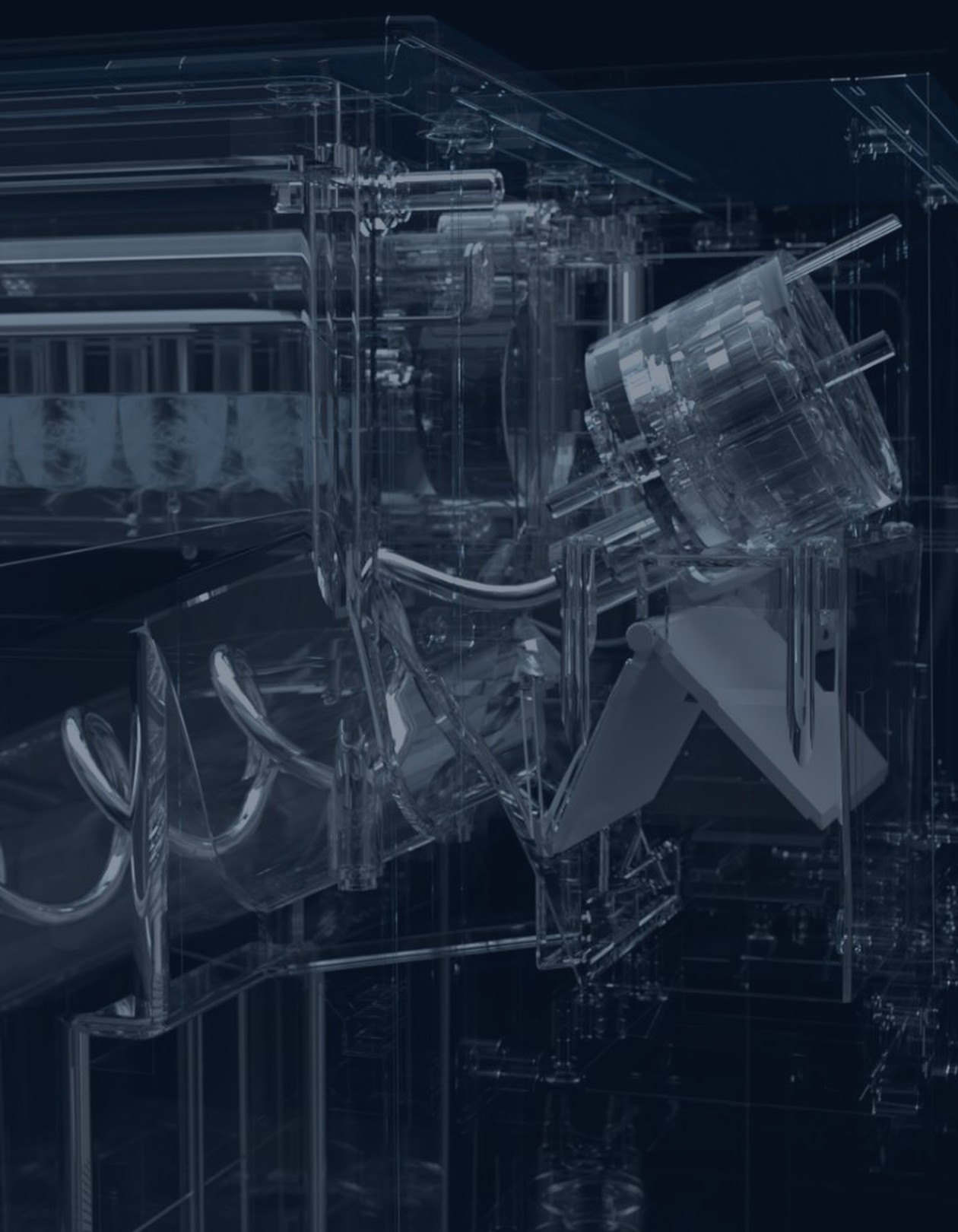

ice service
It comes out on its own. And waits chilled.
Automatic dispensing
One touch and the cube drops into the glass. No scoops, no hands, no ice across the counter.
Automatic door
The bin only opens to serve: outside air doesn't get in to warm or contaminate the ice.
Insulated +500 g bin
High-density foamed material. The ice waits ready without melting or clumping, with intermittent agitation.
Smart control
Full-bin detection, self-diagnosis, fault alerts and automatic anti-jam and defrost programmes.
04 cold and hot

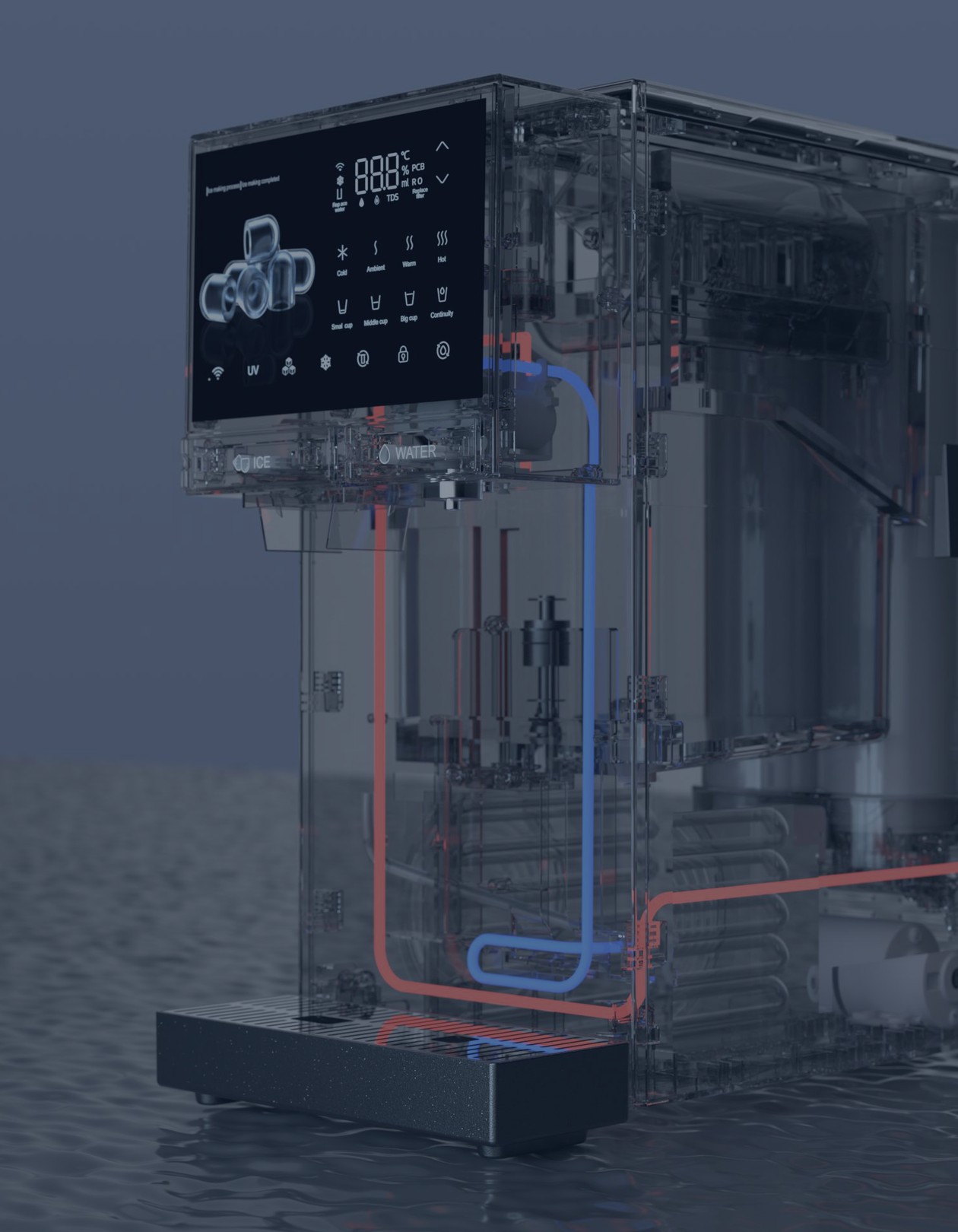

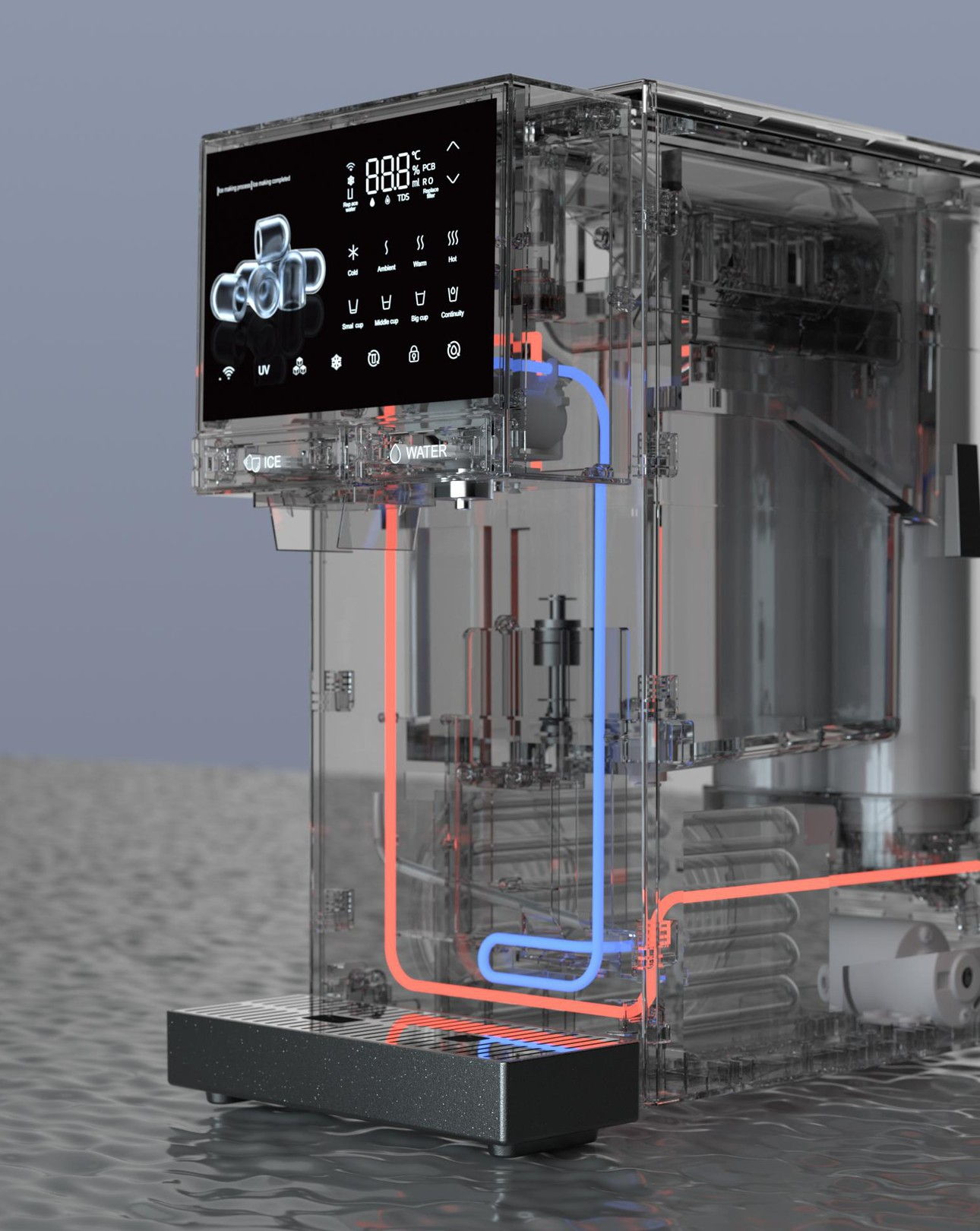

Two circuits. So cold comes out cold and hot comes out hot.
Two independent circuits, no mixing and no waiting.
cold

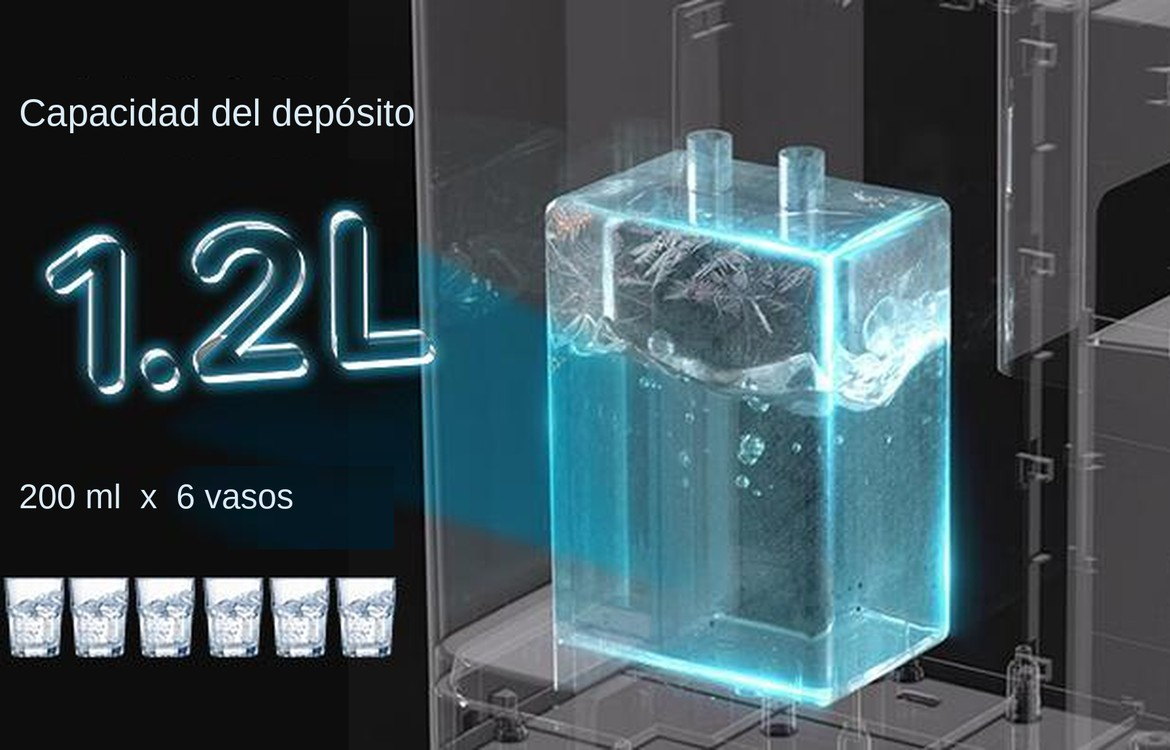

2.5 litres per hour. And 1.2 L always ready.
The compressor brings water down to drinking temperature in under twenty minutes and keeps the pace even with the kitchen at forty degrees. The 1.2 L tank is insulated with high-density foam: it holds the cold, doesn't condense and serves six glasses in a row without dropping the standard.
< 20 min
to drinking water
6 glasses
of 200 ml in reserve
heat
Three seconds. Whatever temperature you ask for.
40 °CPowdered milk. The temperature that dissolves without destroying.
60-85 °CTea and infusions. Each leaf asks for its own.
100 °CA real boil: pasta, broths, instant soups.
> 90 %energy conversion. It heats only what you serve.
The hot-water temperature is adjustable: these are the most common reference points, not a fixed menu.
05 day to day
Understood without a manual.

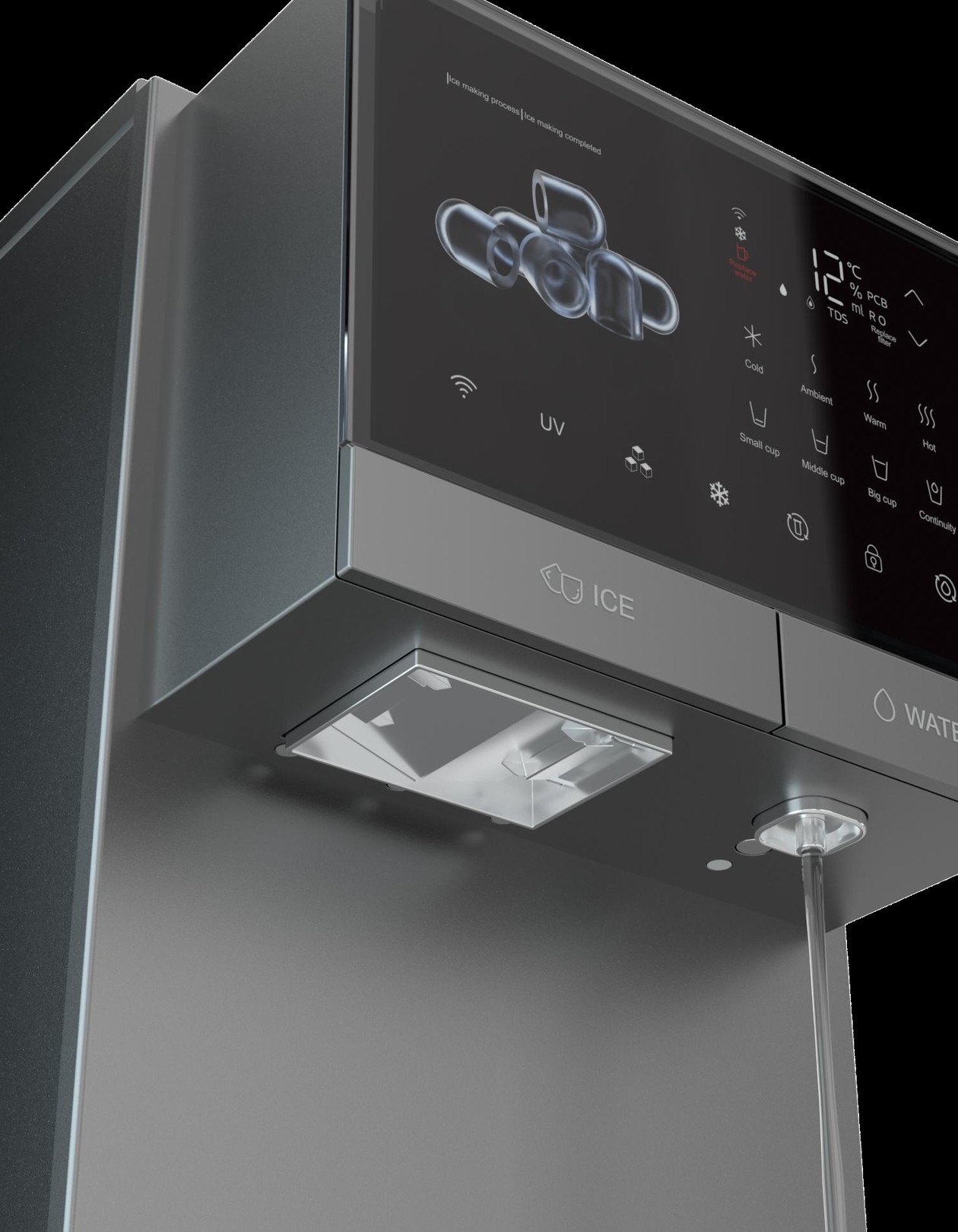

Touch panel
With mechanical confirmation: you know you've pressed.
Magnetic tray
Lifts off with two fingers and empties into the sink.
Child lock
One button. Hot water stops being a risk.

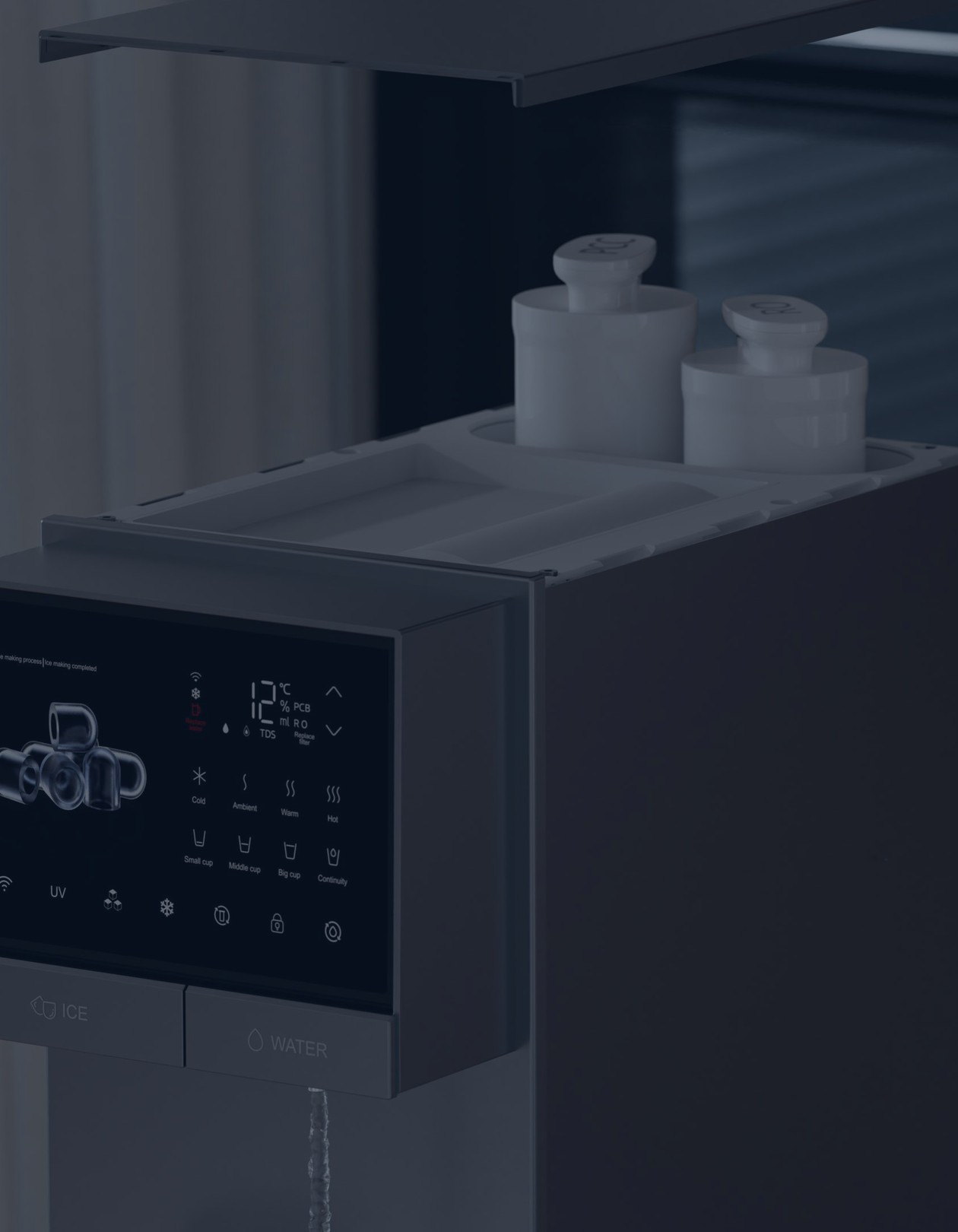

Quick-change cartridge: replaced without tools and without calling anyone. The unit tells you when it's due.
connectivity
What happens inside, on your phone.
Over WiFi: inlet water quality, real-time TDS, remaining filter life, service volume and child lock. All from the sofa.
OTA updates. The unit updates itself, no technician visit. What you buy today can get better next year.
Optional feature depending on the unit's configuration.
06 where it lives
Three places, the same machine.
At home. Water for cooking without altering the taste, ice for after dinner and warm water at three in the morning. In 41 cm of counter. See Home →
At the office. Iced coffee in the office, tea in the meeting room and zero bottles to restock. It runs quietly. See Business →
In hospitality. Continuous ice and service water with a character of its own, no bottle store and no glass to return. See Horeca →
technical sheet
Every figure, on one page.
ProductCountertop water processor with cold water, hot water and ice
ModelKubic
Water supplyDirect mains connection · no feed tank
Dimensions415 × 305 × 455 mm
Net weight19.3 kg
Voltage / frequency220 V ~ / 50 Hz
Total rated power2,100 W (+5 % / −10 %)
Heating power2,000 W
Standby consumption≤ 0.02 kW·h / 24 h
Working pressure0.4 – 0.8 MPa
Cold-water tank1.2 L · high-density foam insulation
Ice bin capacity500 g
Ice production9 cubes per cycle · 8-10 minute cycle
Cooling capacity2.5 L/h
Service temperatures5 °C · ambient · adjustable hot water (references 40 · 60 · 85 · 100 °C)
Treatment stages5 stages · sediment (PP) · chlorine & odour reduction · 300 G reverse osmosis · byaccuor mineralisation · UVC sterilisation
Filtration grade5-10 µm (first stage) · 0.0001 µm (osmosis)
Total filtration capacity4,000 L
Treated water flow≥ 0.78 L/min · about 47 L/h
Water recovery> 72 %
SterilisationContinuous UVC · ions in the ice compartment
ConnectivityWiFi with app and OTA update (optional)
Operating ambient temperature4 – 40 °C · humidity ≤ 90 % RH
download
The full catalogue, in PDF.
The full Kubic catalogue, with the detail of every function and the complete technical sheet.
